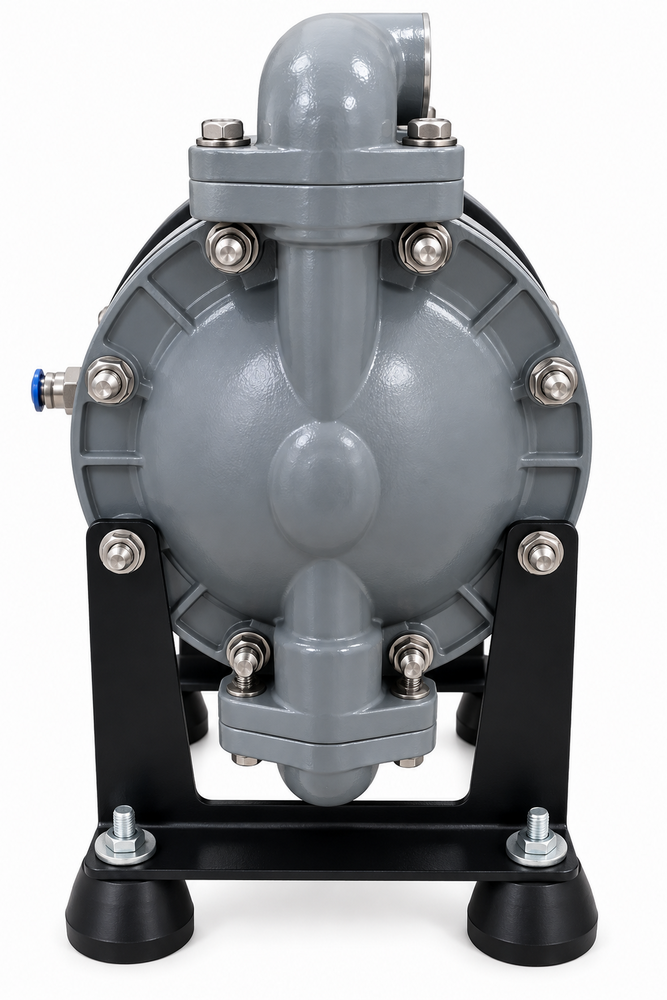

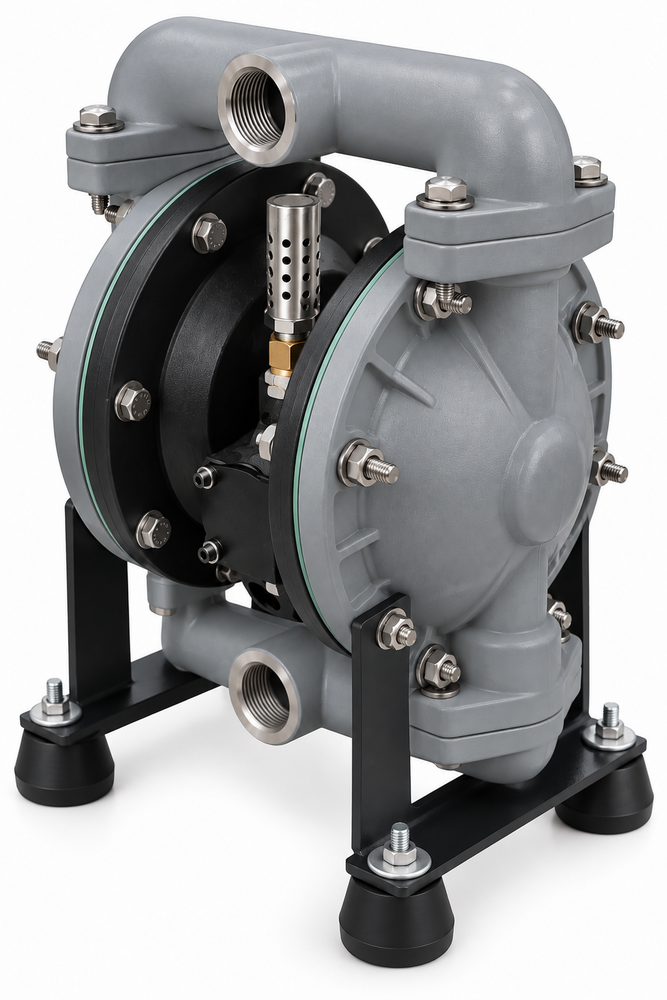

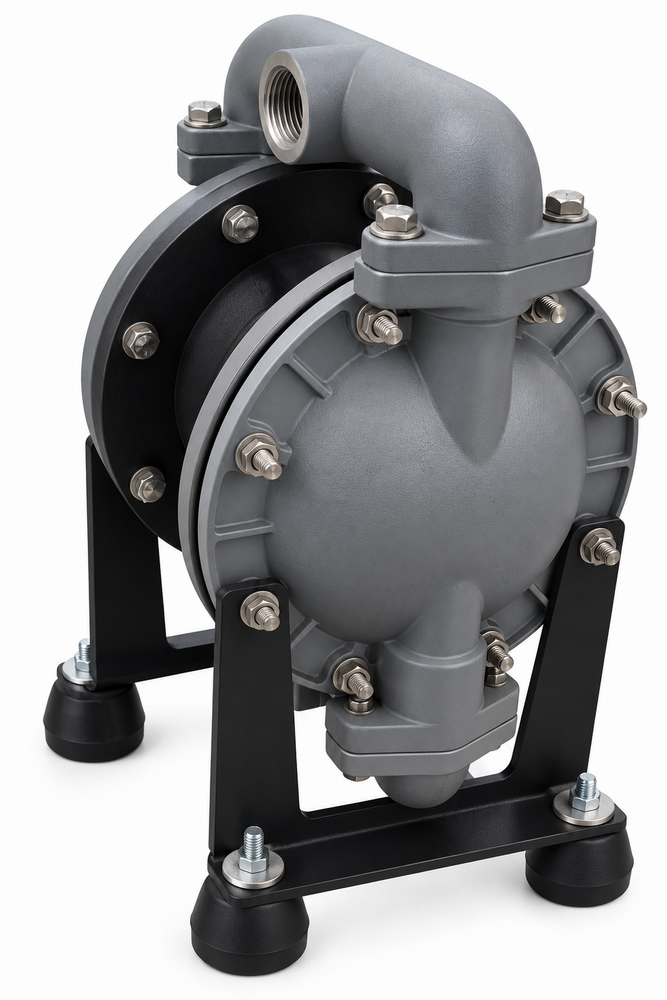

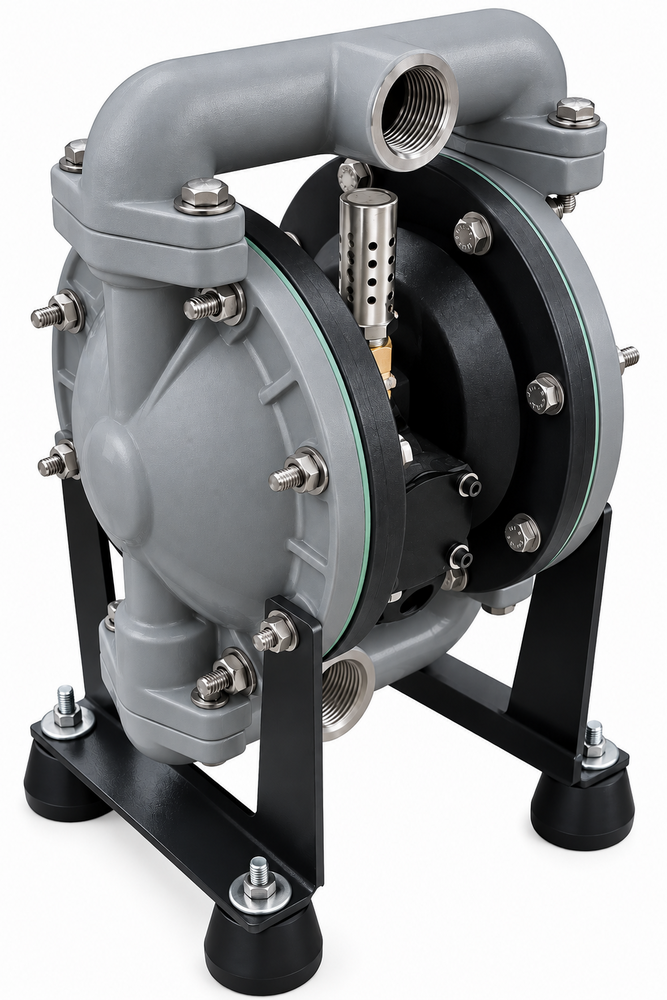

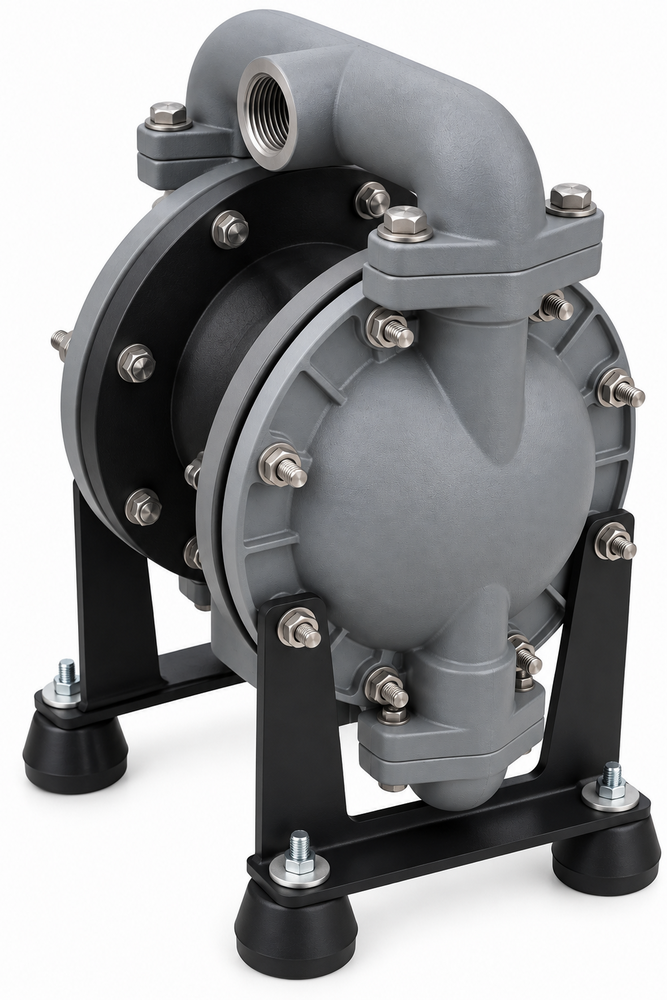

AIR OPERATED DIAPHRAGM PUMP

Name: Industrial diaphragm pump
Brand: FLOWRUN INDUSTRIES
Price: 10000.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

AIR OPERATED DIAPHRAGM PUMP Specification

Theory
Diaphragm Pump

Control System
Air Pressure Regulator, Pneumatic Control

Speed
Variable (depends on air supply)

Mounting Type
Base Mounted / Foot Mounted

Voltage
Not Applicable (Pneumatic Operation)

Working Temperature
-10C to 100C

Head Size
Up to 70 meters

Caliber
1 inch (DN25)

Flow Rate
Up to 150 LPM (Litres Per Minute)

Noise Level
< 70 dB(A)

Discharge Pressure
Maximum 7 bar

Max Suction
Up to 5 meters (Dry Lift)

Features
Corrosion Resistant, Leak Proof, Explosion Proof, Dry Run Capable

Inlet/Outlet
1 inch / 25 mm (approx.)

Frequency
Not Applicable (Pneumatic)

Material
Polypropylene / Aluminium / SS304 / SS316

Structure
Double Diaphragm

Power
Air Operated (Compressed Air: 2-7 bar)

Standard
ISO 9001 / CE Approved

Fuel Type
Compressed Air

Pressure
Up to 7 bar (100 psi)

Suction Type
Positive Displacement

Seals Type
PTFE / EPDM / Viton

Priming
Self-Priming

Pump Type
Air Operated Double Diaphragm (AODD) Pump

Capacity
Up to 9 m3/hr

Air Inlet Size
1/4 inch

Weight
Approx. 7-12 kg (varies by material)

Installation
Portable and Compact Design

Diaphragm Material
PTFE / Santoprene / NBR

Maximum Viscosity
Up to 5000 cps

Maintenance
Easy Disassembly For Cleaning

Service Life
Long Life With Minimal Maintenance

Protection Class
IP55 (Depending on Model)

Maximum Particle Size
Up to 6 mm

About AIR OPERATED DIAPHRAGM PUMP

Experience the glorious performance of our Prime Industrial Diaphragm Pump-an essential for challenging environments. This pivotal pump handles particles up to 6 mm and viscosities up to 5000 cps, with a robust build available in polypropylene, aluminium, SS304, or SS316. Featuring self-priming, leak-proof, and explosion-proof advantages, it's easily reserved through our fast-growing catalogue at the lowest price. With ISO 9001/CE approvals and minimal maintenance needs, this AODD pump is perfect for chemical, wastewater, food, and pharma sectors requiring a reliable and high-standard solution.

Versatile Application and Supreme Material Quality

The Industrial Diaphragm Pump is engineered for both specific and general use across chemical processing, wastewater management, and the food-pharma sector. Built with corrosion-resistant materials like PTFE, Santoprene, Polypropylene, and Stainless Steel, it guarantees long service life and dependable operation. Excellent for transferring chemicals, slurry, oils, solvents, and viscous fluids, its flexible configuration accommodates a variety of applications. Its portable and compact design makes installation seamless, catering to diverse industrial setups with impeccable efficiency.

Payment Terms, Logistics, and Export Capabilities

Request a quotation and benefit from competitive asking prices, supported by clear payment terms to streamline procurement. Our advanced logistics ensure consistent supply ability to meet your needs, whether local or abroad. With proven export experience, we serve Prime markets across Asia, the Middle East, Africa, and Europe. Dedicated support teams manage documentation, tracking, and delivery, securing peace of mind from reservation to receipt of this pivotal, industrial-grade diaphragm pump.

FAQ's of Industrial diaphragm pump:

Q: How does the industrial diaphragm pump handle differing fluid types and viscosities?

A: The pump is engineered to manage a wide range of fluid types-including chemicals, slurries, oils, solvents, and viscous fluids-up to a viscosity of 5000 cps. Its specially selected diaphragm and seal materials provide compatibility with corrosive, abrasive, and hazardous fluids.

Q: What are the benefits of air-operated (pneumatic) operation for this pump?

A: Air-operated functionality means the pump requires no electrical connection, making it ideal for explosion-proof and hazardous environments. It offers variable flow and pressure control simply by adjusting the air supply, and supports dry running without pump damage.

Q: When is this pump most effective in industrial applications?

A: This diaphragm pump excels in processes demanding high reliability and minimal downtime-such as chemical batch transfer, wastewater treatment, or food and pharmaceutical handling-thanks to its long service life, robust material choices, and ease of maintenance.

Q: Where can the industrial diaphragm pump be installed for optimal results?

A: Its portable, compact, and base-mounted design allows for flexible installation in both mobile and fixed setups. With an IP55 rating (model dependent), the pump suits indoor and covered outdoor facilities in industrial, chemical, and waste processing environments.

Q: What is the process for cleaning and maintaining the pump?

A: The pump features easy disassembly, enabling fast cleaning and inspection. Minimal maintenance is required, thanks to corrosion-resistant, leak-proof construction and high-quality diaphragms and seals that support long intervals between servicing.
