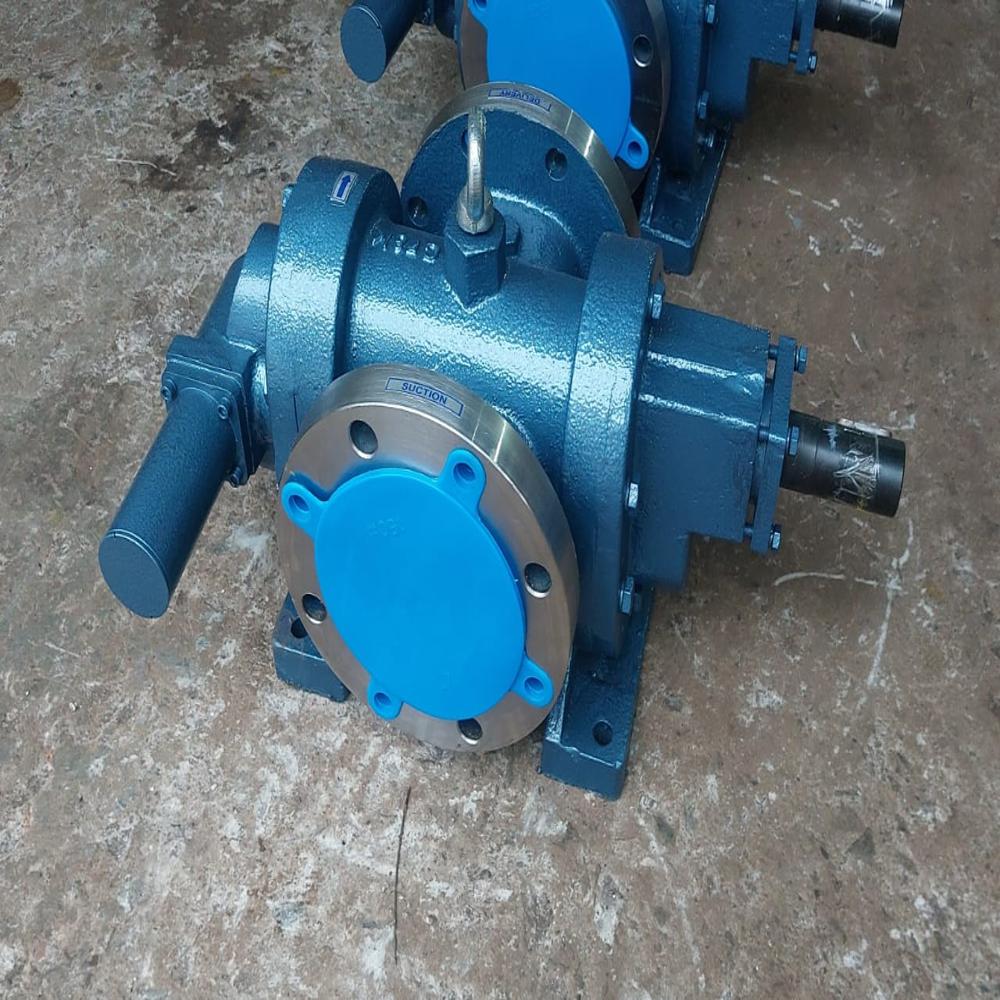

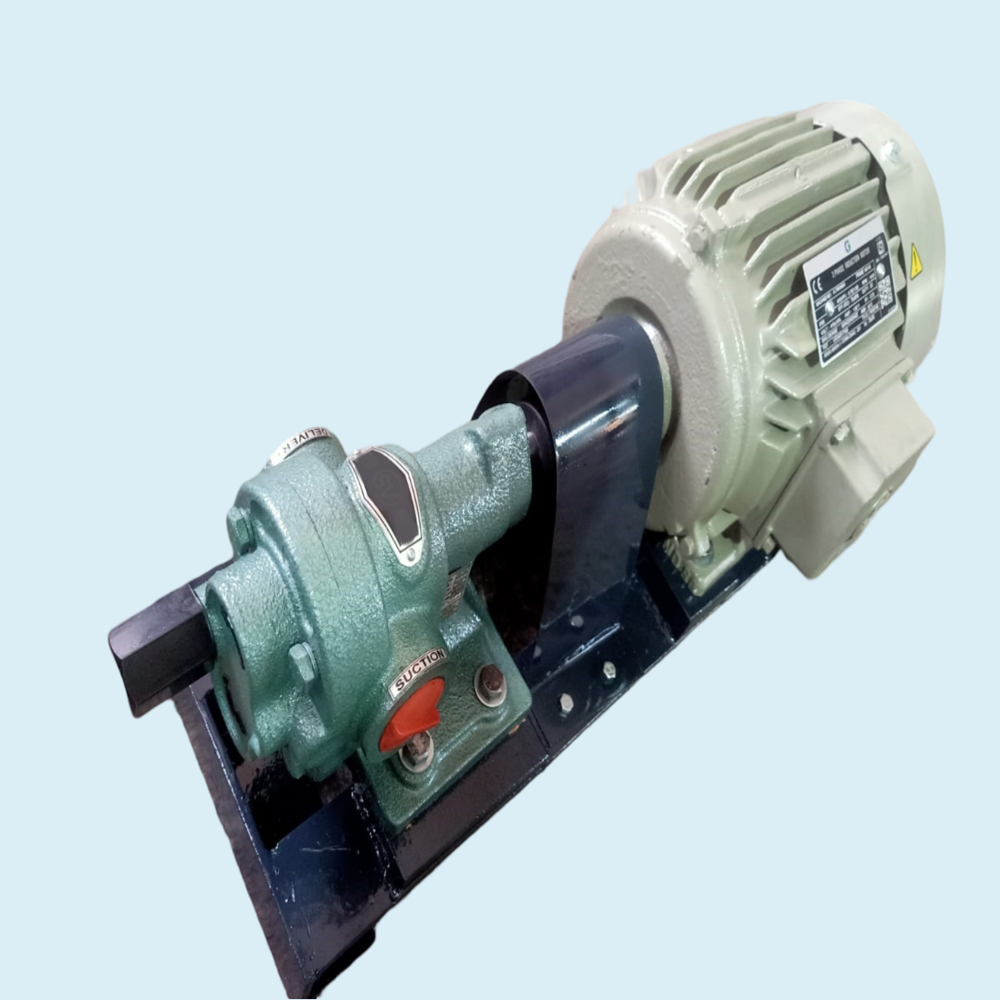

Rotary Gear Pump

Name: Rotary Gear Pump
Brand: FLOWRUN INDUSTRIES
Price: 7000.0 INR
Availability: InStock

Price 7000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rotary Gear Pump Specification

Frequency
50 Hz / 60 Hz (Motor dependent)

Theory
Internal/External Gear Theory

Inlet/Outlet
1 to 6 flanged

Max Suction
Up to 7 meters

Features
Compact design, High efficiency, Robust construction, Easy maintenance

Speed
Up to 1440 RPM

Noise Level
Low - Gear Design for Silent Operation

Control System
Manual / Automatic (Optional With Motor Controls)

Discharge Pressure
Up to 10 kg/cm2

Mounting Type
Base Mounted / Foot Mounted

Flow Rate
10 LPM to 5000 LPM

Working Temperature
-10C to +120C

Voltage
Not Applicable (Driven by external motor)

Caliber
Depends on model, typically 25mm to 150mm

Head Size
Up to 10 kg/cm2

Material
Cast Iron / Stainless Steel / Bronze

Structure
Single/Double Helical Spur Gear

Power
Driven by Electric Motor / Engine / Coupling Assembly

Standard
IS 11589 / DIN / Custom

Pressure
Up to 10 kg/cm2

Application
Other

Suction Type
Positive Suction

Seals Type
Mechanical Seal / Gland Packing

Priming
Self-priming

Pump Type
Rotary Gear Pump

Capacity
10 LPH to 50000 LPH

Viscosity Range
Up to 1,00,000 SSU (Saybolt Universal Seconds)

Intermittent Operation
Suitable for continuous and intermittent duty

Mounting Flange Standard
ANSI / DIN / BS

Maximum Differential Pressure
Up to 10 Bar

Bronze Bush Bearing
Standard in heavy duty models

Lubrication
Self-lubricated via fluid pumped

Coupling
Flexible coupling for vibration-free operation

Optionals
Jacketed casing for heating/cooling, Flameproof construction

Approval/Certification
CE / ISO 9001

Max Temperature with Viton Seal
Up to 200C

Direction of Rotation
Clockwise / Counterclockwise (Reversible Construction Available)

Shaft Material
EN8 / Stainless Steel

Corrosion Resistance
Available for specialized fluids

Rotary Gear Pump Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Main Domestic Market
All India

About Rotary Gear Pump

Discover a hot deal on our rotary gear pump - the pinnacle of cost-effective liquid transfer. Engineered for lofty performance, this sublime pump thrives with viscosities up to 1,00,000 SSU and adapts with reversible rotation. Its valuable features include self-lubrication, bronze bush bearings, and rugged EN8/Stainless Steel shafts. Mount easily with ANSI/DIN/BS flanges. Enjoy robust construction, corrosion resistance, optional flameproof design, and unbeatable price. Ideal for transferring oils, fuels, chemicals, lubricants, and more, it elevates your operation with efficiency and reliability at maximum value.

Outstanding Applications & Versatile Usage

Rotary gear pumps excel in transferring viscous media across various industries, including oil, chemical, pharmaceutical, food, and hydraulic sectors. Esteemed for their reliable positive suction and low noise, they handle oils, chemicals, fuels, lubricants, and other fluids requiring precise, high-capacity movement. Their adaptability fits both continuous and intermittent operations, making them a staple in environments demanding robust performance and minimal maintenance. Their lofty versatility and sublime durability make them invaluable across all application areas.

Sample Policy & Market Reach

Purchase orders are processed efficiently, ensuring prompt delivery and robust packaging that safeguards product market value. Our sample policy accommodates industry requirements and supports client evaluation needs. We export to principal global markets, including Asia, Africa, the Middle East, and beyond, while also maintaining a valuable presence in major domestic markets. Whether for single units or bulk demand, our rotary gear pumps consistently meet expectations for quality, value, and packaging excellence, solidifying our renowned reputation.

FAQ's of Rotary Gear Pump:

Q: How does the rotary gear pump accommodate different viscosities and fluids?

A: The pump is engineered to handle viscosities up to 1,00,000 SSU, allowing it to transfer a broad range of fluids including oils, chemicals, lubricants, and fuels. Specialized corrosion-resistant models are available for challenging liquids.

Q: What are the main benefits of using a rotary gear pump in industrial applications?

A: This pump offers high efficiency, robust construction, cost-effectiveness, and minimal maintenance. Its self-priming and positive suction features ensure reliable operation, while reversible rotation and optional features allow adaptation to various process needs.

Q: When is a bronze bush bearing recommended for these pumps?

A: Bronze bush bearings are standard in heavy-duty models and are especially recommended when operating under high load or continuous use, enhancing durability and operational lifespan.

Q: Where can the rotary gear pump be mounted and how is it installed?

A: The pump supports base or foot mounting and uses ANSI, DIN, or BS flanges for secure installation. Flexible coupling ensures vibration-free operation regardless of the application environment.

Q: What does the sample policy cover for potential buyers?

A: Our sample policy allows new customers to assess the quality and compatibility of the pump with their specific application before placing a bulk purchase order, ensuring satisfaction and market value.

Q: What types of optional features are available for specific process requirements?

A: Optional features include jacketed casing for fluid heating/cooling, flameproof construction for hazardous areas, and manual or automatic control systems. These elevate pump performance in specialized applications.
