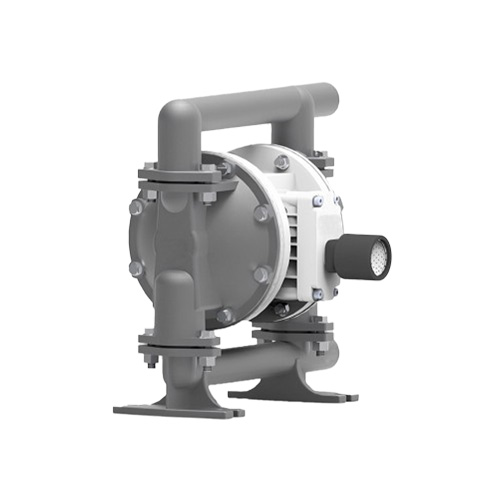

Double Diaphragm Pump

Name: Air Operated Double Diaphragm Pump (AODD)
Brand: FLOWRUN INDUSTRIES
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Double Diaphragm Pump Specification

Speed
Variable, Depends on Air Supply

Control System
Manual, Optional Solenoid/Pneumatic Valve

Theory
Reciprocating Pump

Discharge Pressure
Up to 7 bar

Flow Rate
up to 150 LPM (varies by model)

Max Suction
5-6 meters (dry suction)

Caliber
1 inch

Inlet/Outlet
1 inch BSP/NPT (other sizes available)

Noise Level
Below 85 dB(A)

Voltage
Not Applicable (Air Operated)

Features
Self-priming, Run Dry Capability, Corrosion Resistant, Portable

Head Size
up to 70 meters (varies by model)

Working Temperature
-10C to 100C (depending on material)

Mounting Type
Base Mounted

Material
Polypropylene/Aluminum/PTFE/SS316 (varies by model)

Structure
Double Diaphragm

Power
Pneumatic (Compressed Air Driven)

Standard
ISO 9001, ATEX (for hazardous area variants)

Fuel Type
Not Applicable (Air Driven)

Pressure
Max. 7 bar (100 psi)

Application
Chemical, Pharmaceuticals, Wastewater, Food & Beverage, Paints & Coatings

Suction Type
Positive Suction

Seals Type
Elastomeric Diaphragm Seal

Priming
Self-priming

Pump Type
Air Operated Double Diaphragm Pump (AODD)

Capacity
up to 9 m3/h (varies by model)

Air Consumption
up to 400 L/min at maximum flow

Diaphragm Material Options
Santoprene, PTFE, EPDM, Viton, Nitrile

Service Lifetime
Diaphragm up to 30 million cycles (typical)

Weight
Approx. 8-15 kg (varies by material)

Fluid Viscosity Handling
up to 10000 cP

Maximum Solids Passage Size
up to 4 mm (varies by model)

Air Inlet Connection
1/4 inch BSP/NPT

Maintenance
Easy Disassembly Design

Explosion Proof Rating
Optional for ATEX certified models

Installation Orientation
Vertical or Horizontal

Double Diaphragm Pump Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Double Diaphragm Pump

Experience first-class performance with our Air Operated Double Diaphragm Pump (AODD), a towering solution valued by industry leaders. Designed for a sizzling limited-time offer, this preeminent pump effortlessly tackles challenging fluids, handling up to 10,000 cP viscosity and 4 mm solids, while delivering flows up to 150 LPM. With robust Santoprene, PTFE, EPDM, Viton, or Nitrile diaphragms, this AODD pump guarantees optimal service lifetime, easy maintenance, and corrosion resistance. Its portable and explosion-proof options ensure flexible, safe operations across chemical, pharmaceutical, and food processing applications. Seize this value-packed opportunity now!

Plant Application and Direction of Use - Advancing Your Operations

The Air Operated Double Diaphragm Pump (AODD) is an asset for chemical plants, pharmaceuticals, wastewater, and food & beverage industries. Its ability to transfer aggressive fluids with positive suction and self-priming features brings operational advantage. To use, simply connect the air inlet and fluid lines, keeping the pump in a vertical or horizontal orientation as needed. The design allows for rapid installation and straightforward adjustment for varying plant layouts and application demands.

Export Markets, FOB Port, and Payment Terms - Seamless International Transactions

Our AODD pumps are handed over to valued clients across main export markets, including Asia, Europe, the Middle East, and North America. Standard dispatch is from our established FOB port, ensuring prompt delivery. The list price offers competitive value, with outlay options including advance payment, letter of credit, or mutually agreed terms. Dedicated support streamlines paperwork and helps you acquire this first-class product with assurance wherever your facility is located.

FAQ's of Air Operated Double Diaphragm Pump (AODD):

Q: How does the Air Operated Double Diaphragm Pump (AODD) benefit chemical and pharmaceutical applications?

A: The AODD pump provides exceptional corrosion resistance and can handle a wide range of viscosities and aggressive fluids, making it ideal for chemical and pharmaceutical industries. Its self-priming design and ability to run dry further add operational reliability.

Q: What is the process for installing and operating the AODD pump?

A: Installation involves connecting the air supply to the 1/4 inch BSP/NPT inlet and ensuring proper fluid line connections to the inlet and outlet. The pump can be mounted vertically or horizontally, and operation is controlled via manual, solenoid, or pneumatic valves.

Q: When should I consider using an AODD pump in my facility?

A: An AODD pump is best employed when transferring corrosive, viscous, or solid-laden liquids where reliability, portability, and safety in hazardous areas are priorities. It is well-suited for plant applications in chemicals, food, pharmaceuticals, and wastewater.

Q: Where can the AODD pump be used in terms of environmental safety?

A: With optional ATEX-certified models, the pump can be safely used in hazardous or explosive environments, ensuring compliance with stringent safety requirements like ISO 9001 and ATEX standards.

Q: What maintenance advantages does the AODD pump offer?

A: The pump's easy disassembly design makes maintenance fast and straightforward. Its durable diaphragm can last up to 30 million cycles, significantly reducing downtime and replacement frequency.
